Signal Generator Suite
Signal Generator Suite is an open-source audio test-signal generator intended for laboratory, measurement, calibration, and verification work. The supplied material specifies 32-bit generation, sample rates up to 768 kHz, support for up to 8 channels, waveform export in WAV PCM format, and a set of synthesis modes that covers both basic waveform production and more specialized test content such as sweeps, DC offsets, noise profiles, and intermodulation signals.
Distribution
Open-source Windows x86/x64 release package.
Generation range
Sample rates up to 768 kHz and frequency coverage up to 100 kHz.
Channel model
Supports up to 8 channels, including odd-channel configurations.
Export model
Outputs lossless WAV PCM test files with low system-resource usage.
What SGS does
Signal Generator Suite is built to generate audio test content rather than to play back or analyze signals. Its role is to create repeatable source material for equipment testing, speaker-system calibration, research, and verification work, with enough control over waveform type, sample rate, channel configuration, and duration to cover both general-purpose and more specialized bench scenarios.
The supplied material specifies 32-bit resolution, sample rates up to 768 kHz, frequency extension to 100 kHz, up to 8 channels, and durations up to 300 seconds. It also explicitly mentions support for odd-channel configurations, which is useful in setups that do not map cleanly to stereo or symmetrical multi-channel arrangements.
Waveform coverage includes sine, square, sawtooth, triangle, DC with adjustable offset, customizable noise profiles, linear and logarithmic sweeps, and intermodulation-oriented signals. In other words, SGS is not limited to a single calibration use case; it is structured as a wider test-signal toolbox.

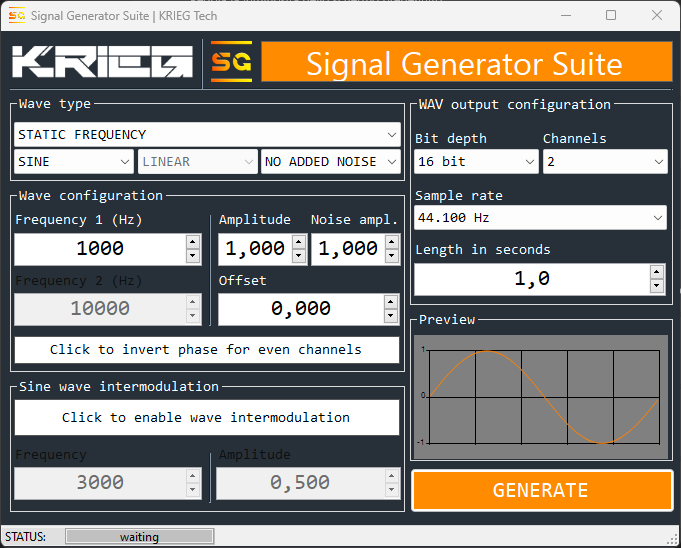

The same material also emphasizes real-time waveform preview, minimal RAM usage, and fast processing. That positions SGS as a utility intended to generate technically controlled output without requiring a heavy runtime footprint.
Capability Map
Core waveforms
- Pure sine
- Square
- Triangle
- Sawtooth
- DC with adjustable offset
Advanced test content
- Customizable noise profiles
- Linear sweeps
- Logarithmic sweeps
- Intermodulation-oriented signal generation
Configuration scope
- 32-bit output
- Up to 8 channels
- Odd-channel configuration support
- Durations up to 300 seconds
Operational characteristics
- Real-time waveform preview
- Lossless WAV PCM export
- Minimal system-resource usage
- Fast processing path
Operating scope
Maximum resolution
Specified generation depth for professional-grade test-file output.
Maximum sample rate
Supports high-rate output scenarios where conventional consumer rates are not enough.
Up to 8 channels
Multi-channel generation with support beyond standard stereo workflows.
Maximum duration
Allows longer test files without forcing short-loop-only generation.
